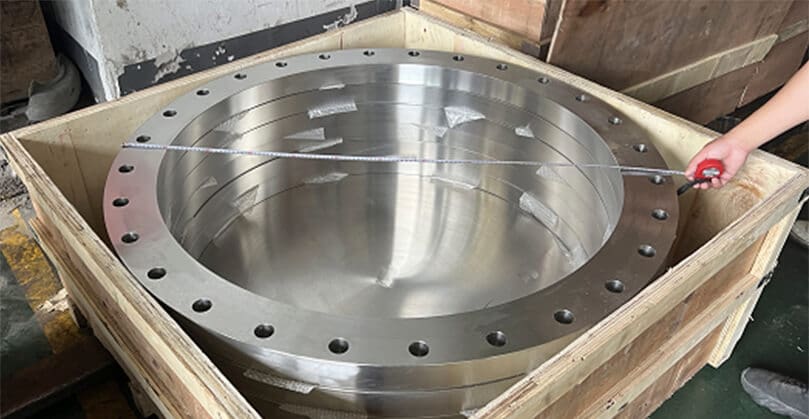

Flanges

  • Flange is a protruded ridge, lip or rim, either external or internal, that serves to increase strength (as the flange of an iron beam such as an I-beam or a T-beam); for easy attachment/transfer of contact force with another object ; or for stabilizing and guiding the movements of a machine or its parts (as the inside flange of a rail car or tram wheel, which keep the wheels from running off the rails).
  • Flanges are designed to the following pressure ratings: 150 lb, 300 lb, 400 lb, 600 lb, 900 lb,1500 lb and 2500 lb or 10 Bar, 15Bar, 25Bar, 40Bar, 64Bar, 100Bar and 150Bar. Various types of flanges are available depending upon the type of their constructional features.
  • Flange types are Slip On Blind, Weldneck, Socketweld, Threaded, Lap Joint, Orifice and Spectical Blinds, Spacers. Sizes available: 1/4″ through to any size. Wall thickness: Schedule 5s through to Schedule XXS and heavier. Special items according to customer drawings.

Flanges are generally used when there is a connection to valves, in-line instruments and/or connection to equipment nozzles is required. Flange fittings
generally involve pressing two surfaces to be joined tightly together, by means of threaded bolts, wedges, clamps, or other means of applying high compressive forces.

Flanges are used to connect pipes with each other, to valves, to fittings, and to specialty items such as strainers and pressure vessels. A cover plate can be connected to create a “blind flange”. Flanges are joined by bolting, and sealing is often completed with the use of gaskets or other methods.

Standard Grades according ASTM A / ASME SA182, F304/L and F316/L (dual marked and certified), ASME 16.5, annealed and fully machined, raised face with spiral serrated and smooth finish (125-250 RMS / 3.2- 6.3 μm) to MSS SP-6, hardness to NACE MR0175, IC to ASTM A262E and PMI tested. With certificate to EN10204/3.1.

Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.

Our product prices will be available based on the current Philippine market, specifically, Metro Manila, Metro Cebu, and Metro Davao. Therefore you are assured of a fair trade from us.
